Cylinder Head Cummins 6BT 12V
3966454 Bare Cylinder Head 396 645 4 Ba

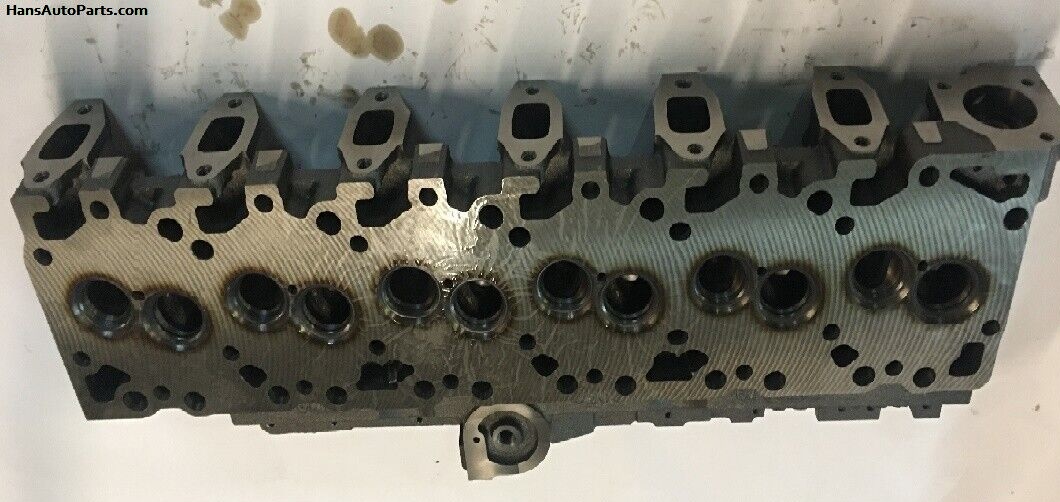

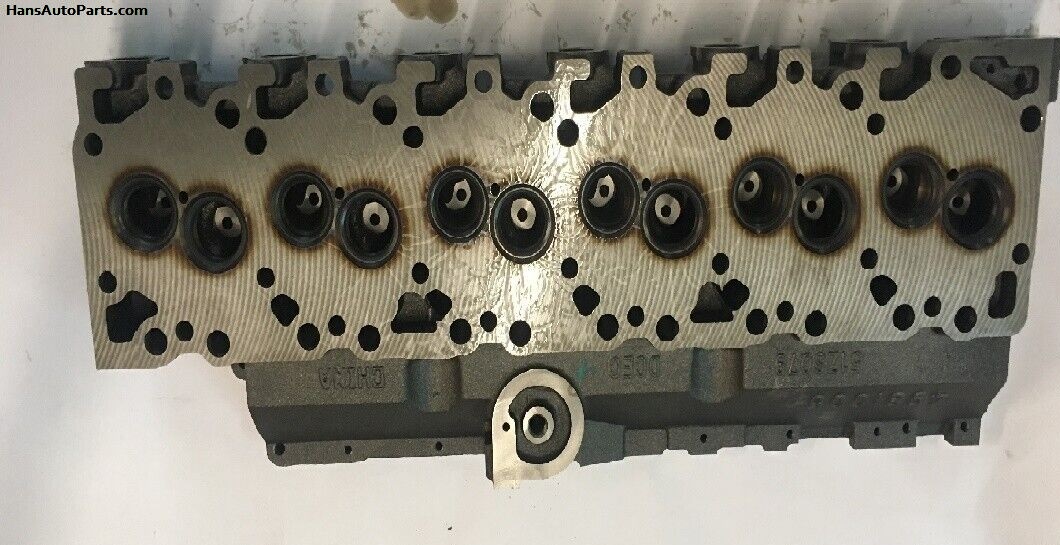

New Cylinder Head For Cummins 6B 6BT 12v with 7mm injector nozzles.

Fits 94-98 Dodge Cummins Ram 2500 3500 5.9 12v.







Scroll down for more detailed compatibility information.

Part Number: 934742 3934746 3934747 3934768 3934783 3938656 3938657 3966451 3966453 3967454 3930933 3930652 3966452 3966454 3967458 3967459 3280055 3802805 3863606 3917287 3925389 3925391 3927300 3930421

Weight: 75 lbs.

Price: $449.00
Short Product Description:

3966454 Bare Cylinder Head

Quantity to Add:











shopping cart

Questions and Answers:

Q: What is the flatness spec for the cylinder head on Cummins 6B Series engines? 9/25/2024
A: The Cummins Repair Manual says that the flatness spec maximum for 6B cylinder heads is .30mm end to end and side to side.

Q: What is the parallelism spec for the cylinder head on Cummins 6B Series engines?
9/25/2024
A: The Cummins Repair Manual says that the parallelism spec for the top and bottom of the cylinder head is .4mm maximum for 6B cylinder heads.

Q: What is the cylinder head bolt torque spec on 1999 - 2002 Cummins 6BT engines.
10/7/2024
A: The Haynes Repair Manual says that there are 4 steps. Firstly, all bolts should be torqued to 59ft-lbs. Then 77 ft-lbs. Then recheck all bolts are 77ft-lbs. In the last step, all bolts are tightened and additional 90 degrees.

Q: What is the cylinder head bolt torque spec on 2003 and newer Cummins 6BT engines.
10/7/2024
A: The Haynes Repair Manual says that there are 4 steps. Firstly, all bolts should be torqued to 52ft-lbs. Then loosen 360 degrees. Then torque to 77 ft-lbs. Then recheck all bolts are 77ft-lbs. In the last step, all bolts are tightened and additional 90 degrees.



3930652 Cylinder Head Quantity: 1 Engine Year: 1996 B5.9 (215) CPL:2175 Sample ESN: 56326974

3930652 Cylinder Head Quantity: 1 Engine Year: 1997 B5.9 (190) CPL:1551 Sample ESN: 46114812

Description: 3966454 Bare Cylinder Head
Price: $449.00
