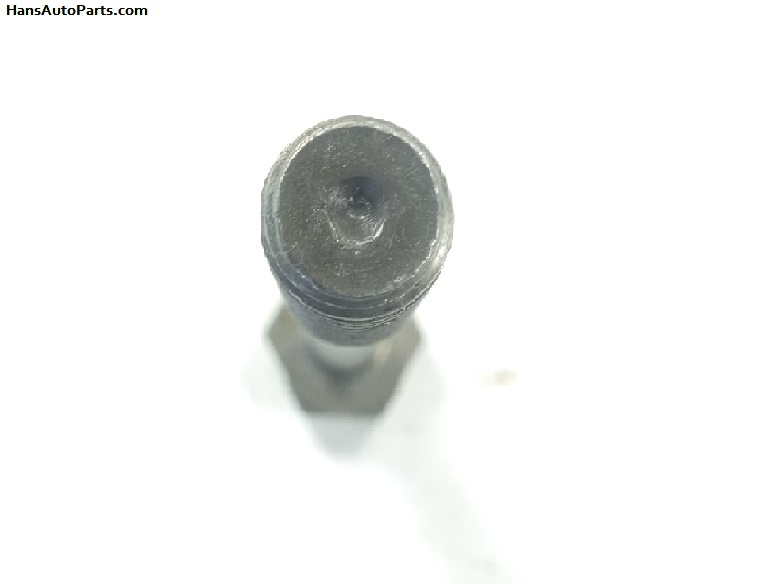

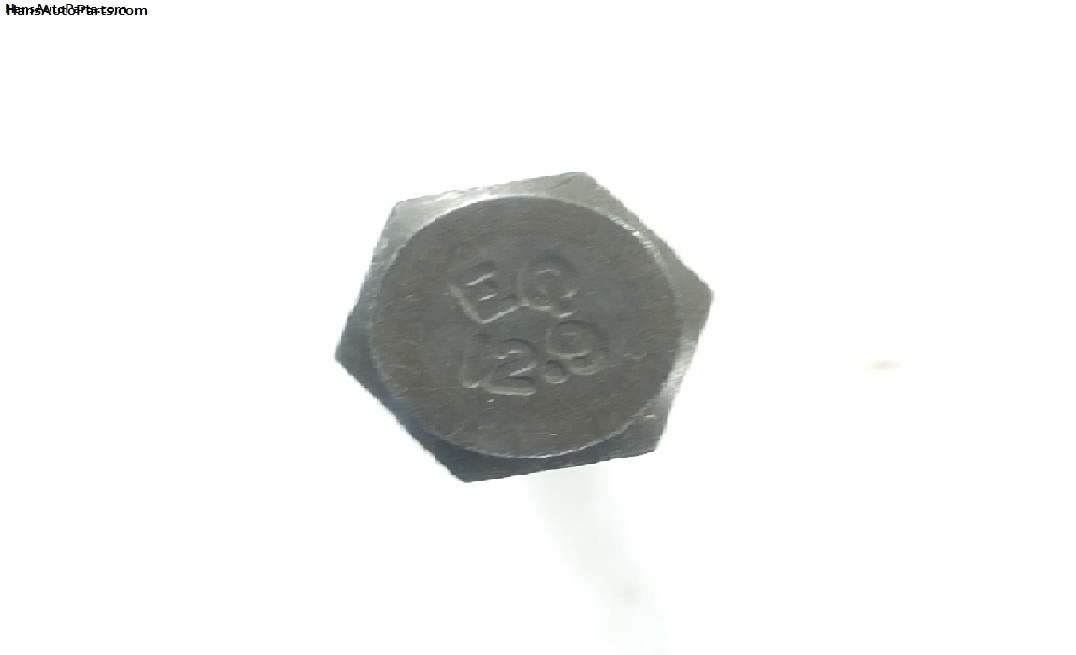

Crankshaft Main Bearings Cap Bolt Cummins 4BT 6BT

New Crankshaft Main Bearing Cap Bolt for Cummins 4B/4BT 8v and 6B/6BT 12v.

14mm M14 X 2 X 119. M14x2-119mm

Scroll down for more detailed compatibility information.

Part Number: 3904217 3900948 3927949

Weight: 0.2 lbs.

Price: $6.00

Short Product Description:

3904217 Crankshaft Bolt

Quantity to Add:

shopping cart

Questions and Answers:

Q: What is the torque spec for main bearing cap bolts on Cummins B Series engines?	9/18/2024
A: The Cummins Repair Manual says that there are three steps. Step one is 50 NM, step two is 119 NM. Step three is 176 NM. This is for B and C series engines.

3904217 Hexagon Head Cap Screw Quantity: 14 Remarks: M14 x 2.00 x 119 Engine Year: 1988 BT5.9 160 CPL:804 Sample ESN: 44243058

3904217 Hexagon Head Cap Screw Quantity: 14 Remarks: M14 x 2.00 x 119 Engine Year: 1996 B5.9 (215) CPL:2175 Sample ESN: 56326974

3904217 Hexagon Head Cap Screw Quantity: 10 Remarks: M14 x 2.00 x 119. Engine Year: 1988 4BT3.9 (105) CPL:858 Sample ESN: 44258612

3904217 Hexagon Head Cap Screw Quantity: 10 Remarks: M14 x 2.00 x 119 Engine Year: 1988 4B3.9 CPL:591 Sample ESN: 21021339

3904217 Hexagon Head Cap Screw Quantity: 10 Remarks: M14 x 2.00 x 119. Engine Year: 1995 4BT3.9-C CPL:730 Sample ESN: 21021339

3904217 Hexagon Head Cap Screw Quantity: 14 Remarks: M14 x 2.00 x 119 Engine Year: 1997 B5.9 (190) CPL:1551 Sample ESN: 46114812

3904217 Hexagon Head Cap Screw Quantity: 14 Remarks: M14 x 2.00 x 119 Engine Year: 1996 B5.9-C177 CPL:599 Sample ESN: 46114812

3904217 Hexagon Head Cap Screw Quantity: 14 Remarks: M14 x 2.00 x 119 Engine Year: 1999 BT5.9-C160 CPL:1288 Sample ESN: 46114812

Description: 3904217 Crankshaft Bolt

Price: $6.00
