3901306 Camshaft Bushing Cummins 6BT 12 4BT 8v

New Camshaft Bushing for Cummins 12v 6BT 5.9.

Scroll down for more detailed compatibility information.

Part Number: 3901306

Weight: 0.2 lbs.

Price: $9.00

Short Product Description:

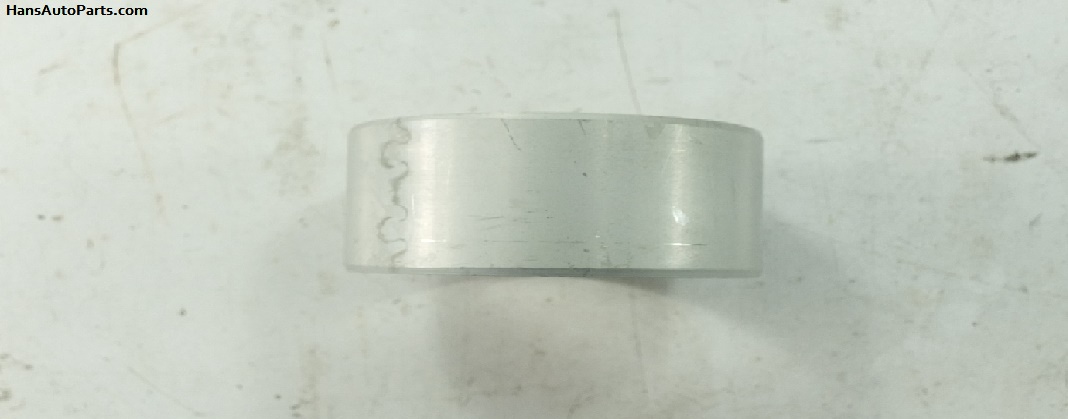

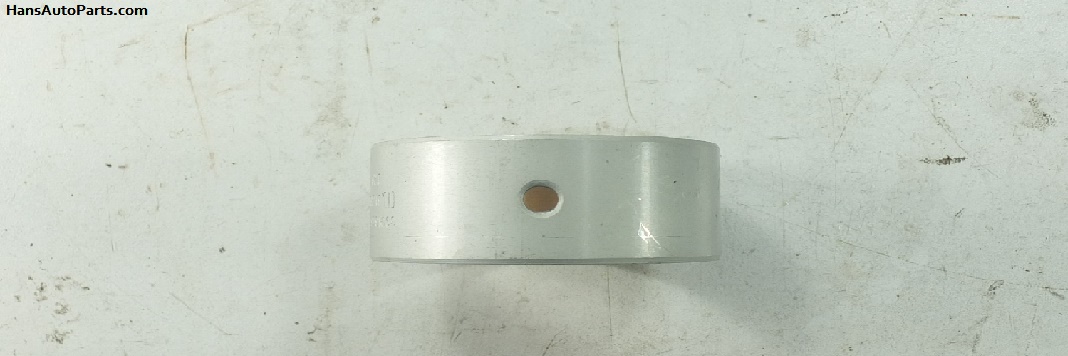

3901306 Camshaft Bushing

Quantity to Add:

shopping cart

Questions and Answers:

Q: What is the spec for the camshaft endplay on 2006 and earlier Cummins 6BT engines?	10/7/2024
A: The Haynes Repair Manual says that the endplay for the camshaft on 2006 and earlier 6BT engines is .006 to .010 inches.
Q: What is the spec for the camshaft endplay on 2007 and newer Cummins 6BT engines?	10/7/2024
A: The Haynes Repair Manual says that the endplay for the camshaft on 2007 and later 6BT engines is .003 to .016 inches.
Q: What is the spec for the thickness of the camshaft thrust plate on newer Cummins 6BT engines?	10/7/2024
A: The Haynes Repair Manual says that the camshaft thrust plate on 6BT engines should have a thickness of between .368 and .377 inches.

3901306 Bushing Quantity: 1 Engine Year: 1988 BT5.9 160 CPL:804 Sample ESN: 44243058

3901306 Bushing Quantity: 1 Engine Year: 1996 B5.9 (215) CPL:2175 Sample ESN: 56326974

3901306 Bushing Quantity: 1 Engine Year: 1988 4BT3.9 (105) CPL:858 Sample ESN: 44258612

3901306 Bushing Quantity: 1 Engine Year: 1988 4B3.9 CPL:591 Sample ESN: 21021339

3901306 Bushing Quantity: 1 Engine Year: 1995 4BT3.9-C CPL:730 Sample ESN: 21021339

3901306 Bushing Quantity: 1 Engine Year: 1997 B5.9 (190) CPL:1551 Sample ESN: 46114812

3901306 Bushing Quantity: 1 Engine Year: 1996 B5.9-C177 CPL:599 Sample ESN: 46114812

3901306 Bushing Quantity: 7 Engine Year: 1999 BT5.9-C160 CPL:1288 Sample ESN: 46114812

Description: 3901306 Camshaft Bushing

Price: $9.00
