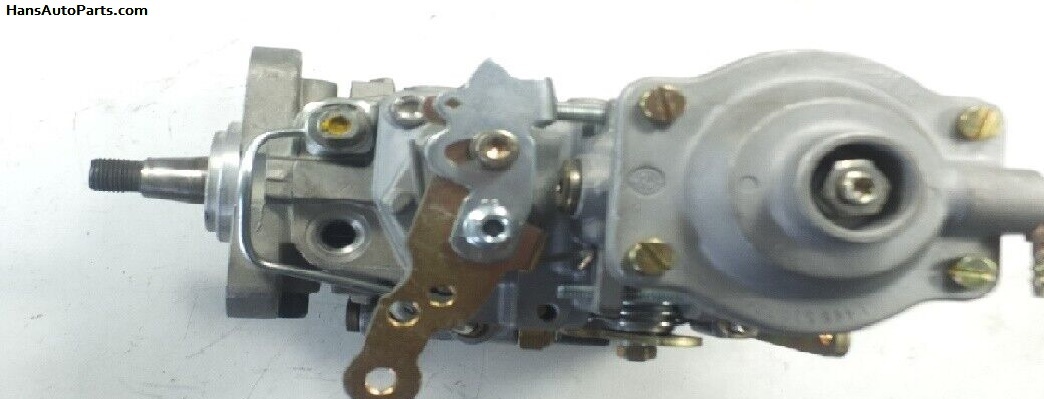

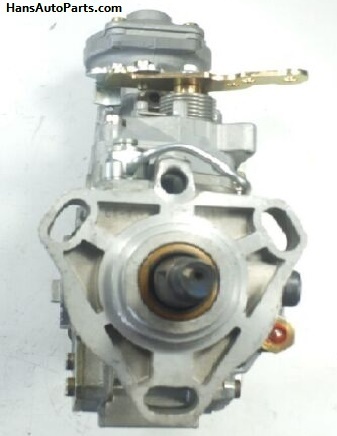

Rebuilt Injector Pump for Cummins 4BT

Rebuilt Injector Pump for Cummins 4BT engines. I sell a few different styles. Some have the timing solenoid and others have short or long delivery valves.

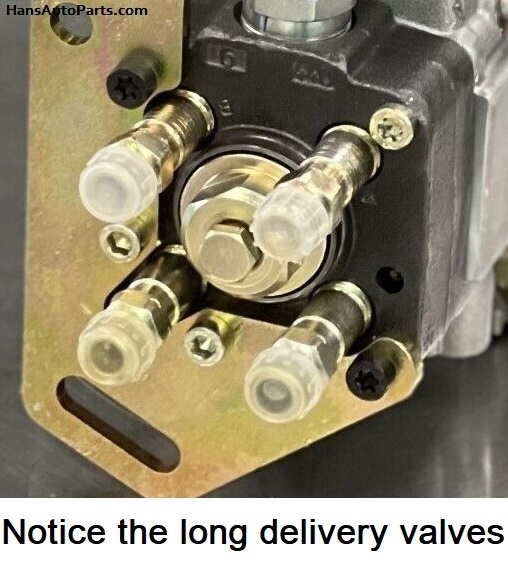

This pump has the timing solenoid on the side and long delivery valves.

For Core Refund / Return Instructions, Click HERE.

Scroll down for more detailed compatibility information.

Part Number: 0460424326 0460424257 3917530 3917531 3917532 3917533 3911242 3914924 0460424055 0460424045

Weight: 21 lbs.

Price: $499.00 plus $150 Core Charge

Short Product Description:

Rebuilt Cummins 4BT Pump with Long Delivery Valves and Timing Solenoid

Quantity to Add:

shopping cart

Questions and Answers:

Q: Is this a 4 or 6 cylinder Engine?	8/4/2024
A: This pump is for a 4 cylinder turbocharged engine.
Q: How does lift measured with the gauge correspond to timing BTDC on inline pumps on Cummins engines?	9/30/2024
A: The Haynes Repair Manual has some charts that indicate that each pump has a different specs and there is not one answer. Somewhere between 4mm and 6mm of lift on the gauge will give anywhere between 11.5 and 14.5 degrees of static timing BTDC. The most common lifts for 6BT engines will give 11.5 degrees BTDC at 5.5mm and 13.5mm. BTDC at 5.9mm.
Q: What are some upgrades to these pumps on a Cummins 4BT 8v engine?	9/30/2024
A: The Haynes Repair Manual discusses a few upgrades. It mentions are stiffer governor spring and a special boost pin. The stiffer governor spring will give a higher max RPM. The special boost pin will give more fuel under turbo boost. The Haynes manual also talks about screwing the star wheel in the top of the pump to get more fuel. Lastly, it discusses turning the fuel enrichment screw in a little, and I would say that you might want to start with that.

3917530 Pump, Fuel Injection Quantity: 1 Remarks: Recon equivalent 3917530 RX Engine Year: 1997 4B3.9 CPL:767 Sample ESN: 21021339

3914924 Pump, Fuel Injection Quantity: 1 Engine Year: 1988 4BT3.9 (105) CPL:858 Sample ESN: 44258612

3914924 Pump, Fuel Injection Quantity: 1 Engine Year: 1997 4B3.9 CPL:767 Sample ESN: 21021339

Description: Rebuilt Cummins 4BT Pump with Long Delivery Valves and Timing Solenoid

Price: $499.00 plus 150 Core Charge
